Good quality automatic candy tablet press machine

FOB Reference Price:Get Latest Price
  • >=1 Pieces
    US $100000.00
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
TP
Model Number:
GZPK720 series
Type:
Rotary Tablet Press
Production Capacity:
950000pcs/h
Max. Pressure(KN):
100KN
Max. Tablet Thickness(mm):
10mm
Max. Tablet Diameter(mm):
25mm
Voltage:
220V/380V
Power(W):
11KW
Weight:
5500kg
Dimension(L*W*H):
1300*1300*2000mm
Certification:
CE ISO9001
Product Name:
High speed Tablet Press Machine
Warranty:
1year
Application:
Pharmaceutical
Keyword:
Good quality automatic candy tablet press machine
Usage:
Tablet Production
Standard:
GMP Standard
Net Weight:
5500kg
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
100 Piece/Pieces per Month for Good quality automatic candy tablet press machine
Packaging & Delivery
Packaging Details
1020*1300*1950mm Export Plywood for Good quality automatic candy tablet press machine
Port
FOB Shanghai
Lead Time :
Shipped in 30 days after payment

Good quality automatic candy tablet press machine.

Product Description





1. Double-sided discharge chutes, high productivity. No handwheel with machine, automatic drive by synchronous motor, it can complete realize automatic production.Separate control cabinet to operate machine, separated production area from operation area to ensure the safety for operator and sanitation for production. Adopts encoder to count, measure and display control is accurate.

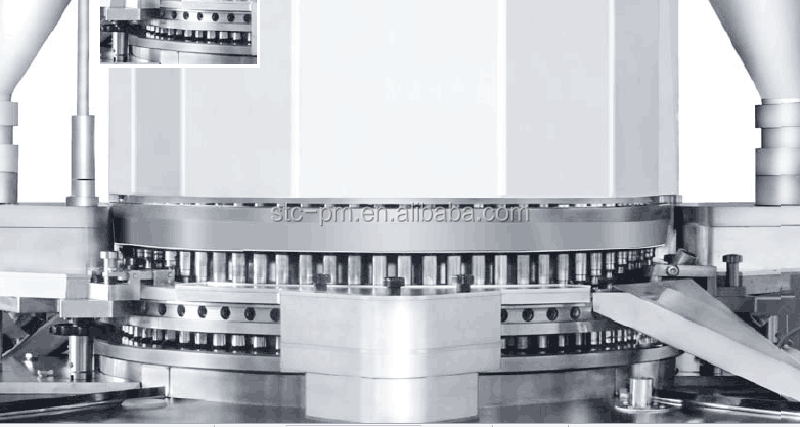

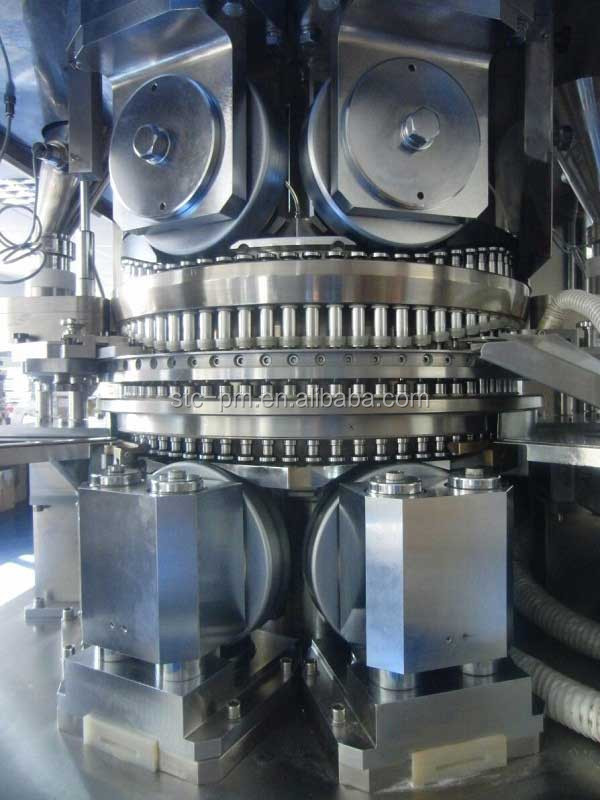

2.Main pressure system, pre-pressure system, filling system, feeding system adopt modular design. Simple structure. These modular parts can be freely adjusted or removed. Non-interference between maintenance are easy. The main pressure and pre-pressure are the same structure which can be interchanged each other. Both main pressure and pre-pressure are all 100kn which make it easier for forming tablets.

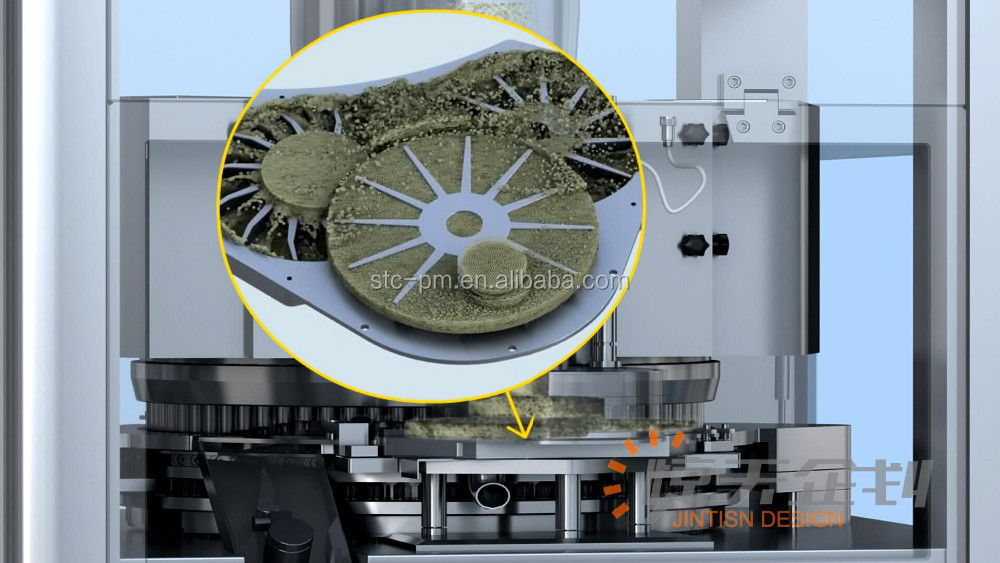

3. Tri-wheeled double layer feeding system.The upper impeller can increase powder flow and balance powder density.The lower impellers are used for feeding and dosing to ensure the uniformity of feeding.Use servo motor to adjust dosing cam track which an control filling depth to ensure accurate dosing.

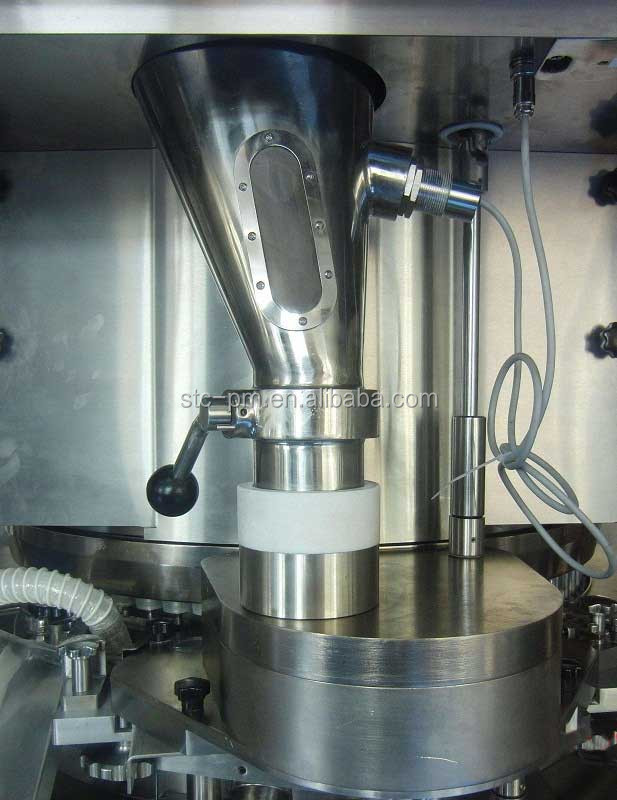

4. Force-feeding device controls the flow of powder and ensures the accuracy of feeding. Feed is easy to be disassembled and platform is easy to be regulated. No dead area in press chamber and easy to be observed and cleaned.







Technical parameters



ModelGZPK-51GZPK-65GZPK-73GZPK-83GZPK-99
No. of stations5165738399
Output range(Tablet s/h)47000-47000062400-62400070000-70000079600-79600095000-950000
Rotation speed range(rpm)8-80rpm
Main pressure100KN
Pre-pressure
IPTDBBBBBSTF-16
Max tablet diameter∅25mm∅16mm∅13mm∅13mm∅10mm
Max lenght of irregular tablet25mm19mm16mm16mm11mm
Diameter of die∅38.1mm∅30.16mm∅24mm∅24mm∅24mm
Max filling depth20mm18mm18mm18mm18mm
Main motor power11KW
Diameter of punch25.35mm19mm16mm
Weight5500kg
Dimension of machine1300*1300*2000mm
Dimension of control cabinet

890*500*1200mm

Our factory











Packaging & Shipping







Our Services

 Pre-sales service

Inquiry and consulting support.

Sample testing support.

Viewing our factory.



After-sales Service

One year guarantee for whole machine.

Training how to install the machine, training how to use the machine.

Engineers  available to service machinery overseas.
