Quick Details

  • Condition: New
  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: TP
  • Model Number: TDP-0/1/2/3/4
  • Type: Single Punch
  • Production Capacity: 6000pcs/h
  • Max. Pressure(KN): 60KN
  • Max. Tablet Thickness(mm): 6mm
  • Max. Tablet Diameter(mm): 15mm
  • Voltage: 220V/380V
  • Power(W): 0.37/0.55kw
  • Weight: 35/60/75/80/95kg
  • Dimension(L*W*H): 530*340*570
  • Certification: CE ISO9001
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Warranty: 1year
  • Application: Pharmaceutical
  • Keyword: tdp-0 manual small tablet tablet press
  • Usage: Tablet Production
  • Tablet shape: Round Tablet Abd Irregular Tablet
  • Standard: GMP Standard
  • Net Weight: 35kg
  • Max. Filling Depth: 12mm
  • Max.Pressure: 10KN
  • Capacity: 6000pcs/h

Packaging & Delivery

Packaging Details 1020*1300*1950mm Export Plywood for tdp-0 manual small tablet tablet press
Delivery Time Shipped in 30 days after payment

tdp-0 manual small tablet tablet press


Product Description

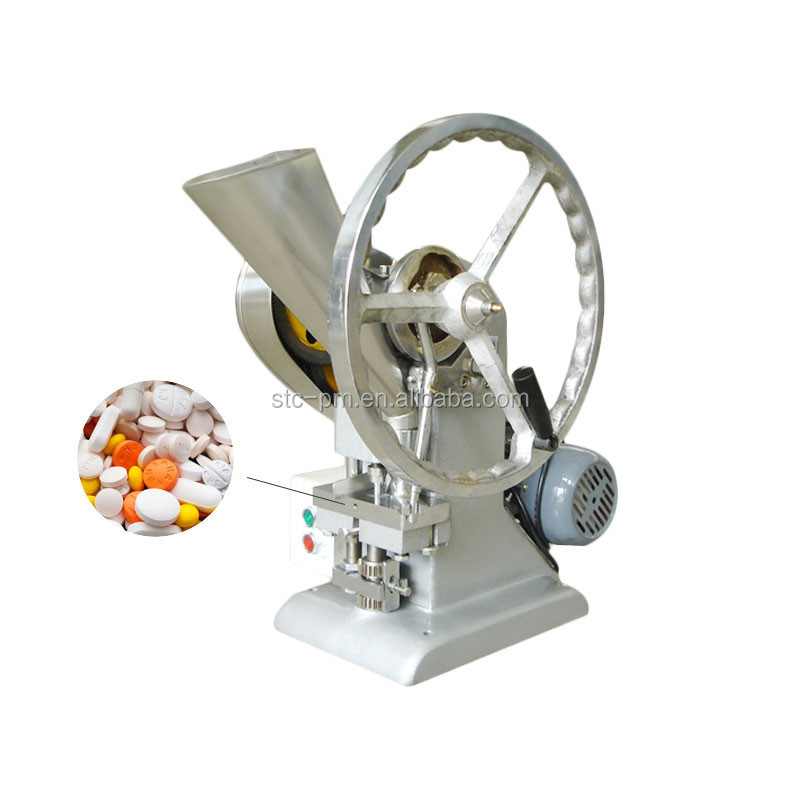

This machine is used for pressing different kinds of granular raw materials into round piece. It is applicable to trial manufacturing in Lab or batch produce in small amount different kinds of piece, sugar piece, calcium piece and piece of abnormal shape. It features a small deskshop type press for motive and continual sheeting. It can also be hand-operated. Only one pair of punching die can be erected on this press.  Both filling depth of material and thickness of piece ae adjustable.



Technical parameters


Product No.TDP-0TDP-1TDP-2TDP-3TDP-4
Max. Pressure(kn)101520 30 40
Max. Dia. of Tablet(mm)101213 14 15
Max. Thickness of Tablet (mm)666 6 6
Max. Depth of Filling (mm)12
Production Capacity (pc/h)6000
Motor Power (kw)0.37 0.55 0.55
Overall Size (mm)530*340*570 530*360*570 680*440*740 680*450*740
Weight (kg)3560 75 80 95
Our factory


Packaging & Shipping


Company Information

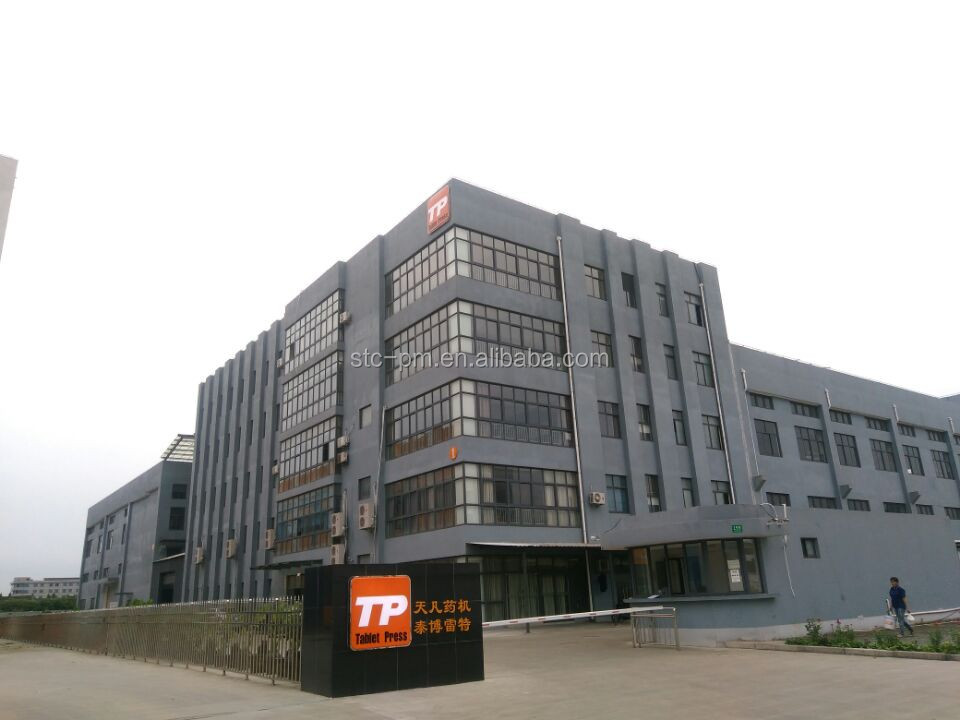

Shanghai Tianfan Pharmacy Machinery Manufactory ,  was established by its original work teams and core technological engineers in 1978 after the system reforms of Shanghai Tianma Pharmacy Machinery Fittings Factory(collectively-owned enterprise).The company has continued to manufacture complete mechanical devices for powder press forming for 40 years and developed and fabricated hi-tech products to satisfy customers.

With the philosophy of Technology Orientation, Quality First, integrity and Responsibility, Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability, and turn Tianfan into a No.1 pharmacy machinery supplier in China, and finally a main brand enterprise in international powder pressing machine industry.




Our Services


 Pre-sales service

Inquiry and consulting support.

Sample testing support.

Viewing our factory.


After-sales Service

One year guarantee for whole machine.

Training how to install the machine, training how to use the machine.

Engineers  available to service machinery overseas.
