Quick Details

  • Condition: New
  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: TP
  • Model Number: TDP-5/5A/5B/6/6A/6B
  • Type: Single Punch
  • Production Capacity: 3600pcs/h
  • Max. Pressure(KN): 60KN
  • Max. Tablet Thickness(mm): 7.5mm
  • Max. Tablet Diameter(mm): 25mm
  • Voltage: 220V/380V
  • Power(W): 0.75kw
  • Weight: 150-185kg
  • Dimension(L*W*H): 600*500*700
  • Certification: CE ISO9001
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Application: Pharmaceutical
  • Model: TDP-5 /6
  • Keyword: China TDP-5 buccal tablets press machinery
  • Warranty: 1year
  • Usage: Tablet Production
  • Standard: GMP Standard
  • Capacity: 3600 pcs/h
  • Max. Depth of Fill: 15mm
  • Tablet shape: Round Tablet Abd Irregular Tablet
  • Net Weight: 150-185kg

Packaging & Delivery

Packaging Details 1020*1300*1950mm Export Plywood for chinaTDP-5 buccal tablets press machinery
Delivery Time Shipped in 30 days after payment

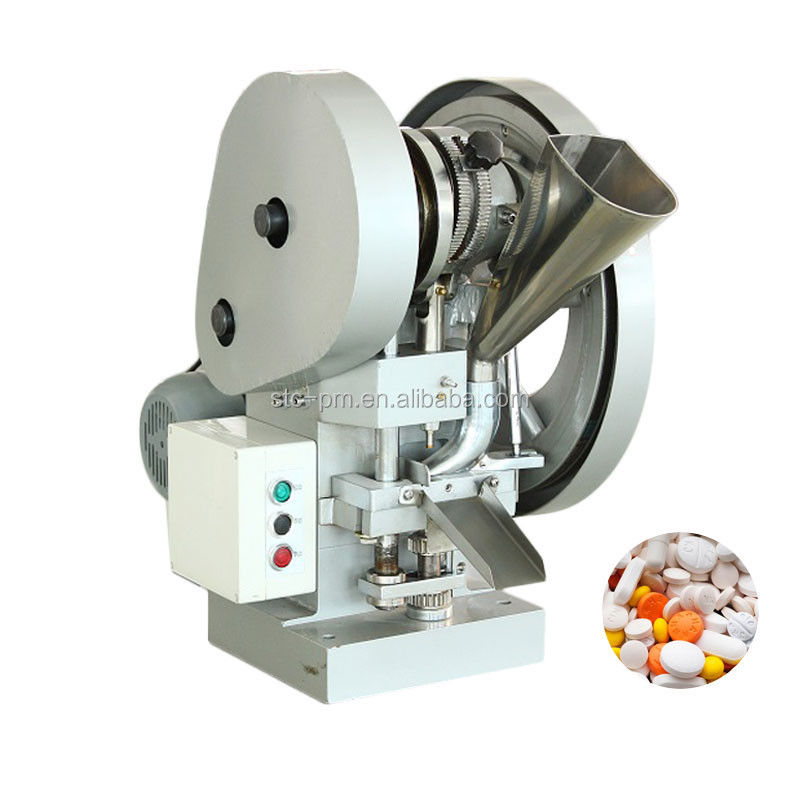

chinaTDP-5 buccal tablets press machinery

Product Description





This machine is used for pressing different kinds of granular raw materials into round piece. It is applicable to trial manufacturing in Lab or batch produce in small amount different kinds of piece, sugar piece, calcium piece and piece of abnormal shape. It features a small deskshop type press for motive and continual sheeting. It can also be hand-operated. Only one pair of punching die can be erected on this press.  Both filling depth of material and thickness of piece ae adjustable.

Technical parameters



Product No.TDP-5TDP-5ATDP-5BTDP-6TDP-6ATDP-6B
Max. Pressure(kn)505050606060
Max. Dia. of Tablet(mm)222222252525
Max. Thickness of Tablet (mm)7777.5 7.57.5
Max. Depth of Filling (mm)15
Production Capacity (pc/h)3600
Voltage220/380
Motor Power (kw)0.750.550.55 1.1 0.750.75
Overall Size (mm)600*500*700650*500*700
Weight (kg)150170185165 180185
Our factory







Packaging & Shipping



Company Information





Shanghai Tianfan Pharmacy Machinery Manufactory ,  was established by its original work teams and core technological engineers in 1978 after the system reforms of Shanghai Tianma Pharmacy Machinery Fittings Factory(collectively-owned enterprise).The company has continued to manufacture complete mechanical devices for powder press forming for 40 years and developed and fabricated hi-tech products to satisfy customers.

With the philosophy of Technology Orientation, Quality First, integrity and Responsibility, Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability, and turn Tianfan into a No.1 pharmacy machinery supplier in China, and finally a main brand enterprise in international powder pressing machine industry.



Our Services



Pre-sales service

Inquiry and consulting support.

Sample testing support.

Viewing our factory.



After-sales Service

One year guarantee for whole machine.

Training how to install the machine, training how to use the machine.

Engineers  available to service machinery overseas.

Free tooling box
