Quick Details

  • Condition: New
  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: TP
  • Model Number: ZP198
  • Type: Rotary Tablet Press
  • Production Capacity: 30720pcs/h
  • Max. Pressure(KN): 60KN
  • Max. Tablet Thickness(mm): 16mm
  • Max. Tablet Diameter(mm): 20mm
  • Voltage: 220V/380V
  • Power(W): 2.2KW
  • Weight: 400kg
  • Dimension(L*W*H): 796*699*1132mm
  • Certification: CE ISO9001
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Name: ZP198-8/10/16 Homemade Pill Press Machine
  • Application: Pill Pressing
  • Usage: Tablet Production
  • Warranty: 1year
  • Standard: GMP Standard
  • Max. Depth of Fill: 16mm
  • Keyword: ZP198-8/10/16 Homemade Pill Press Machine
  • Net Weight: 400KG
  • Item: ZP 198 Rotary Tablet Press

Packaging & Delivery

Packaging Details 796*699*1132mm Export Plywood Package ZP198-8/10/16 Homemade Pill Press Machine
Delivery Time Shipped in 30 days after payment

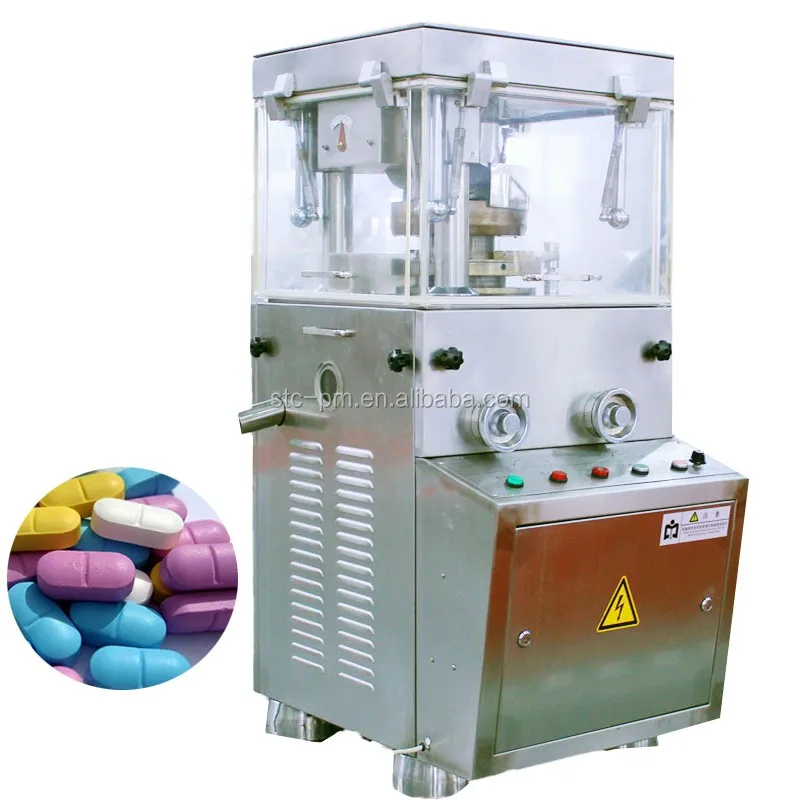

ZP198-8/10/16 Homemade Pill Press Machine

Product Description



Structure features
         1.Single roller,fully enclosed in  compliance with GMP requirements;
     2.Speed adjustment by means of inverter;

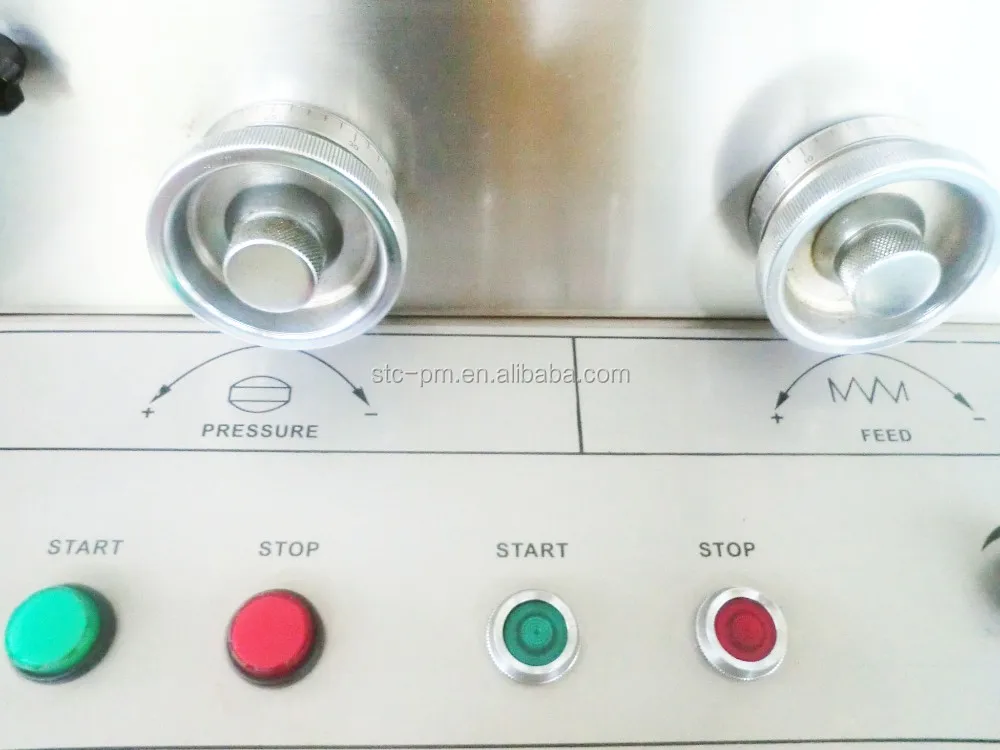

     3.Man-machine interface friendly and easy to operate;
     4.Digital display of the main compression, tablet ejection force, thickness of the
       tablet, fill depth and rotary speed;
     5.Over load protection for motor with emergency stop device.
     6.CE certified optional.










Technical parameters



product No.ZP8ZP10ZP16
Quantity of Punch&die(set)81016
Max.Production Capacity (pc/h)153601900030720
Max. Main Pressure(kn)606060
Max. Tablet Diameter(mm)202012
Max. Filling Depth(mm)161616
Rotation Floor Speed(r/min)15-3015-3015-30
Motor Power(kw)2.22.22.2
Overall Size(mm)794*699*1132794*699*1132794*699*1132
Weight (kg)400400400

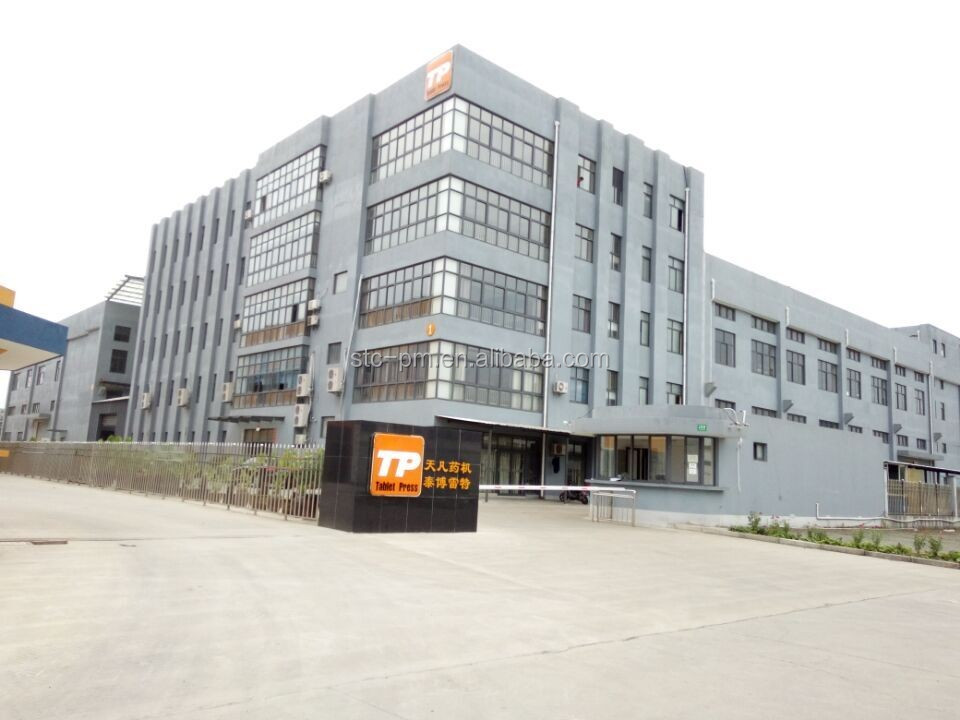

Our factory









Packaging & Shipping



Our Services



Pre-sales Service

1.   Inquiry and consulting support

2.   Sample testing support

3.   Viewing our factory



After-sales Service

1.  One year guarantee for whole machine

2.  Training how to install the machine, training how to use the machine

3.  Engineers  available to service machinery overseas.



Company Information





Shanghai Tianfan Pharmacy Machinery Manufactory ,  was established by its original work teams and core technological engineers in 1978 after the system reforms of Shanghai Tianma Pharmacy Machinery Fittings Factory(collectively-owned enterprise).

The company has continued to manufacture complete mechanical devices for powder press forming for 40 years and developed and fabricated hi-tech products to satisfy customers.

With rich product varieties, the company has integrated the advantages of the same products at home and abroad and successively developed professional automation and data control system to be applied on tablet pressing machine, providing strong assurance to enable the products meet the requirements of CGMP and FDA .The products are popular in domestic markets and exported to USA, Europe, Middle East and Southeast Asia as well.
