Quick Details

  • Condition: New
  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: TP
  • Model Number: DP 30/40
  • Type: Single Punch
  • Production Capacity: 3600pcs/h
  • Max. Pressure(KN): 30KN
  • Max. Tablet Thickness(mm): 0.5-8mm
  • Max. Tablet Diameter(mm): 20mm
  • Voltage: 220V/380V
  • Power(W): 0.55kw
  • Weight: 150kg
  • Dimension(L*W*H): 708*459*740
  • Certification: CE ISO9001
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Application: Pharmaceutical
  • Model: DP 30/40
  • Keyword: DP-30 single punch tablet press machine
  • Warranty: 1year
  • Usage: Tablet Production
  • Capacity: 3600 Pc
  • Tablet shape: Round Tablet Abd Irregular Tablet
  • Standard: GMP Standard
  • Max. Depth of Fill: 20mm
  • Net Weight: 150kg

Packaging & Delivery

Packaging Details 1020*1300*1950mm Export Plywood for DP-30 single punch tablet press machine
Delivery Time Shipped in 30 days after payment

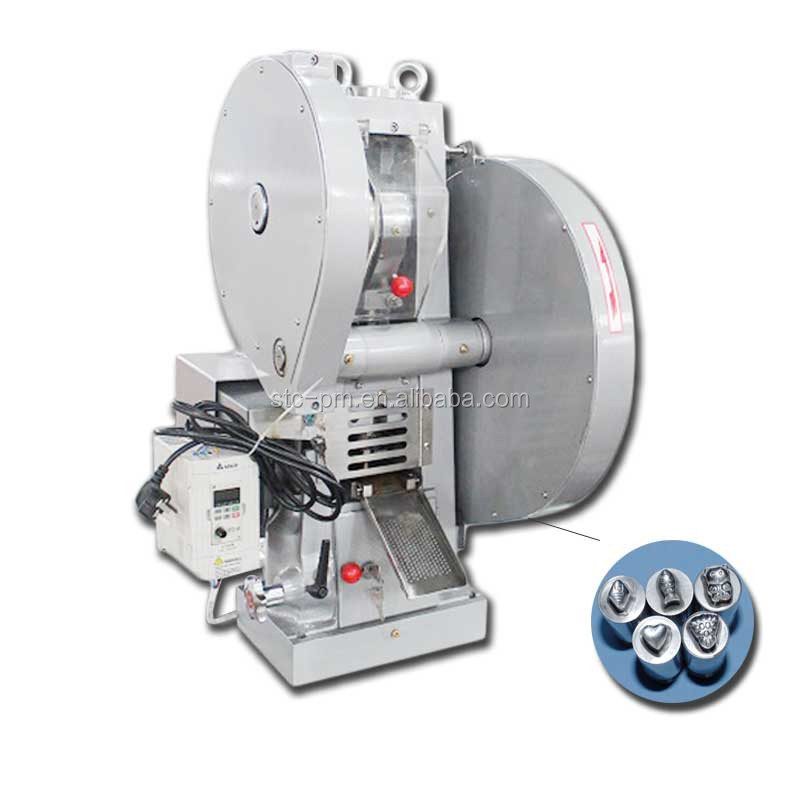

DP-30 single punch tablet press machine.

Product Description





The machine is widely used for pharmacy, chemical, food, and metallurgy industry. It can press ound or iregular tablets from various granular materials. High precision of filling, low-noise, low-consumption of material, and it works smoothly. The minimum consumption of lab material is just 200g. It is a good machine for research&development in lab at hospital and plant, used to small-scale production.













Technical parameters



Product No.DP 30DP 40
Max. Pressure(kn)3040
Max. Dia. of Tablet(mm)2030
Max. Depth of Filling(mm)2022
Max. Thickness of Tablet(mm)0.5-80.5-8
Production Capacity(pc/h)36003600
Voltage(v/hz)220/380220/380
Motor Power(kw)0.550.75
Overall Size(mm)708*459*740850*550*890
Weight(kg)150200

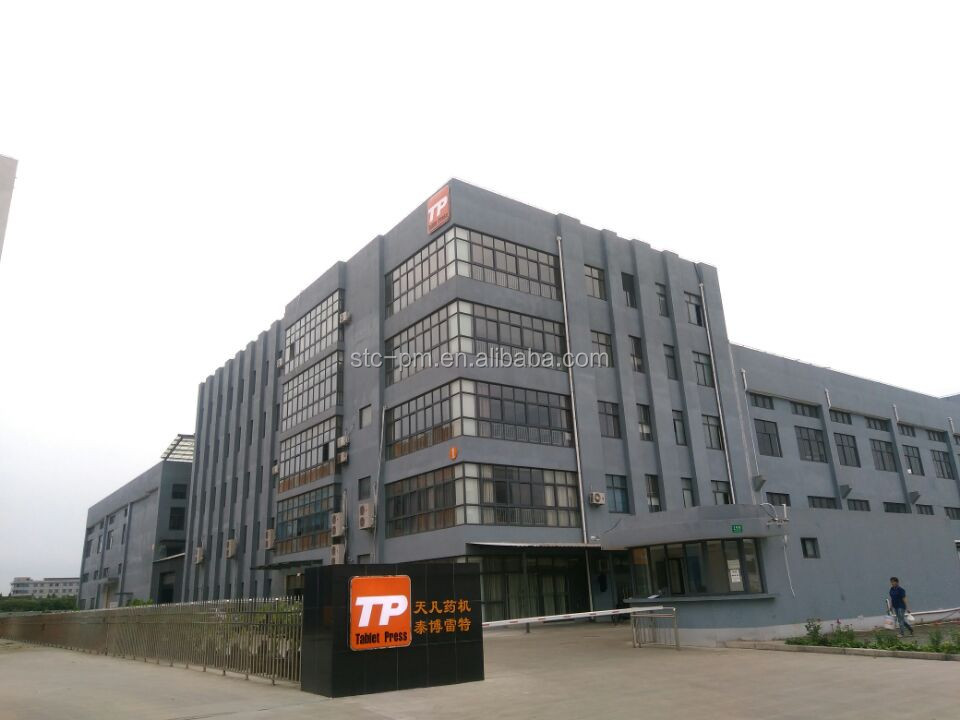

Our factory







Packaging & Shipping



Company Information

Shanghai Tianfan Pharmacy Machinery Manufactory ,  was established by its original work teams and core technological engineers in 1978 after the system reforms of Shanghai Tianma Pharmacy Machinery Fittings Factory(collectively-owned enterprise).The company has continued to manufacture complete mechanical devices for powder press forming for 40 years and developed and fabricated hi-tech products to satisfy customers.

With rich product varieties, the company has integrated the advantages of the same products at home and abroad and successively developed professional automation and data control system to be applied on tablet pressing machine, providing strong assurance to enable the products meet the requirements of CGMP and FDA .The products are popular in domestic markets and exported to USA, Europe, Middle East and Southeast Asia as well.

With the philosophy of Technology Orientation, Quality First, integrity and Responsibility, Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability, and turn Tianfan into a No.1 pharmacy machinery supplier in China, and finally a main brand enterprise in international powder pressing machine industry.




Certifications



Our Services



Pre-sales service

Inquiry and consulting support.

Sample testing support.

Viewing our factory.



After-sales Service

One year guarantee for whole machine.

Training how to install the machine, training how to use the machine.

Engineers  available to service machinery overseas.

Free tooling box
